ROTABROACH ELEMENT 100 2000W 100mm Magnetic Drill, 110v

€995.00 €895.50 Ex. VAT

Christmas Sale 2024

Special Offer
ROTABROACH ELEMENT100 2000W 100mm Magnetic Drill, 110v ROTABROACH ELEMENT100 2000W 100mm Magnetic Drill, 110v ROTABROACH ELEMENT100 2000W 100mm Magnetic Drill, 110v


Code Type No. Quantity Price Ex. VAT
G15589 ELEMENT100 €995.00 €895.50
Add to Basket
Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial  are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Back to results page
Click to view complete product details

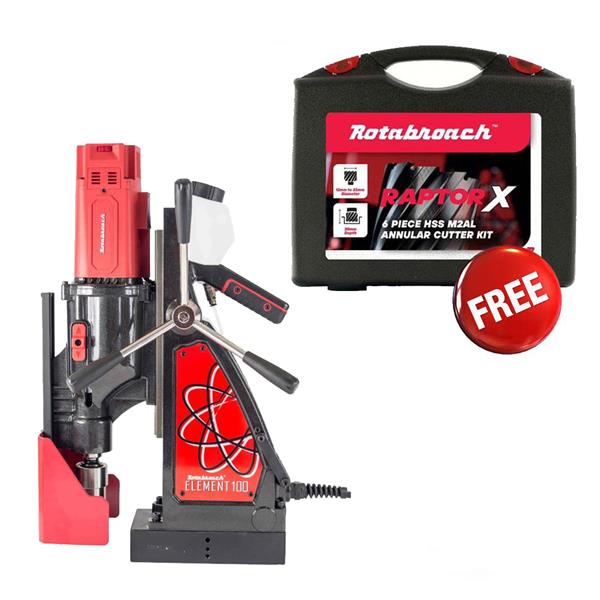

ROTABROACH ELEMENT 100 2000W 100mm Magnetic Drill, 110v

With 4 gears and 24 forward and reverse speeds, gearing is optimised for drilling holes to 100mm diameter. The Element™ 100 is equipped with CutSmart™ technology to enhance tool life, speed of cut and user safety. Swivel base as standard

Features
  • Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch.
  • Powerful 2000w motor with a four-speed mechanical gearbox.
  • Rotabroach’s largest machine (733mm), the Element 100 is the ultimate heavy-duty drilling solution.
  • Suitable for drilling up to 100mm diameter by 100mm depth.
  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
  • Internal cabling reduces the risk of damage and downtime for your magdrill.
  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
  • Features a swivel base.
  • Twist drill, threading and countersinking capabilities.
  • Dual motor protection, minimising wear and downtime of this magdrill.
Specifications
  • Motor Specification: 110V /2000W
  • No Load Speed 45 -700RPM
  • Max Hole Cutting Capacity: ø100 x 100mm Deep – 31.75 with MT Drill
  • Length 370mm
  • Height 733mm
  • Width 230mm
  • Magnet Size 228 x 114mm
  • Machine Weight: 24.8kg
  • Magnetic Adhesion: 20,000N./^ª0
  • Cutter Capacity:  100mm
  • Depth of Cut: 100mm
  • Twist Drill Capacity: 32mm
  • Drill Chuck Capacity:  16mm
  • Morse Taper:  MT3
  • Countersink:  40mm
  • Weight 25KG
  •  Stroke 200mm
  • Tapping: M3
Supplied with
  • Internal Coolant system
  • 16mm Twist Drill Chuck.
  • Arbor Assembly - 6mm
  • Hexagonal Spanner
  • Safety Glasses
  • Arbor Shank
  • Drift
  • Safety Strap
  • 3mm Hexagonal Spanner
  • Stationary Rings
  • Pilot Pin
