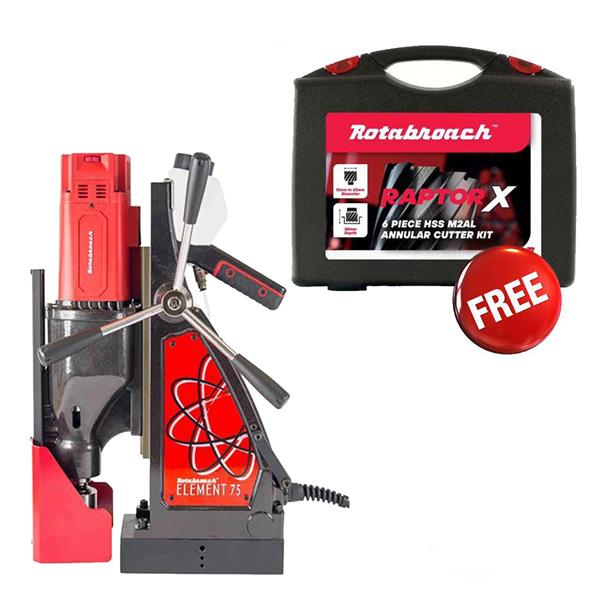

ROTABROACH ELEMENT 75 1800W 75mm Magnetic Drill, 110v

€895.00 €805.50 Ex. VAT

Christmas Sale 2024

Special Offer


Code Type No. Quantity Price Ex. VAT
G15588 ELEMENT75 €895.00 €805.50
Add to Basket
Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial  are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Click to view complete product details

ROTABROACH ELEMENT75 1800W 75mm Magnetic Drill, 110v

Features
  • For Heavy- duty operations the 'Element 75" is a must for drilling larger holes, suitable for drilling up to 75mm diameter by 75mm depth
  • Compact, Durable and more portable than other larger machines
  • The element 75 offers forward and reverse functionality
  • Dual Motor protection system to protection system to proling the machines life and prevent unwanted wear
  • Cutsmart Technology- Designed to protect your motor and cutter, prolonging tool life.
  • Quick release interchangeable handle - allowing you yo operate the mag drill from either side and improving  accessibility.
  • Internal cabling removed the risk of damage and downtime for your magdrill
  • Internal Cooling- Keeping your mag drill cool and allowing you to drill for longer
  • 13mm  Drill chuck that can be used for twist drills
  • Powerful 1800w motor with a two speed mehancial gerabox
Specifications
  • Motor Specification: 110V 1800W
  • No Load Speed 70 -500RPM
  • Max Hole Cutting Capacity: ø75 x 75mm Deep – 26mm with MT Drill
  • Length 375mm
  • Height 713mm
  • Width 214mm
  • Machine Weight: 23.5kg
  • Magnetic Adhesion: 18,500N
  • Magnet Size: 220mm x 114mm
  • Cutter Capacity:  75mm
  • Depth of Cut:  75mm
  • Twist Drill Capacity: 26mm
  • Drill Chuck Capacity:  16mm
  • Morse Taper:  MT3
  • Countersink: 40mm
  • Tapping:  M24
  • Magnet Adhesion:  18500N
  • Magnet Size 220 x 114mm
  • Weight 23KG
  • Stroke 185mm
Supplied with
  • Internal Coolant System
  • 16mm Chuck
  • Arbor Assembly– 6mm
  • Hexagonal Spanner
  • Safety Glasses
  • Arbor Shank
  • Drift
  • Safety Strap
  • 3mm Hexagonal Spanner
  • Stationary Rings
  • Pilot Pin
